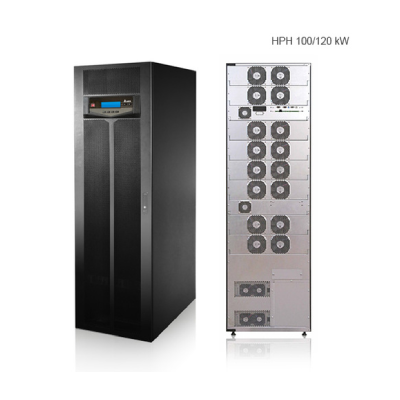

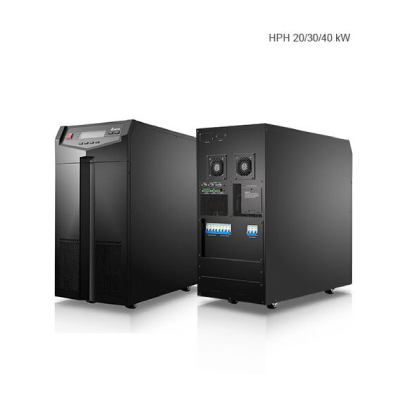

HPH Series UPS, Three Phase, 20/30/40/60/80/100/120 kW

Best-in-class power protection with maximum power and cost efficiency

The Ultron HPH is a true online double-conversion UPS offering the best-in-class combination of maximum available power, unbeatable energy efficiency and superior power performance for small data centers and other mission critical applications. With fully rated power (kVA=kW), the Ultron HPH provides maximum available power without de-rating the UPS. Thanks to the three level IGBT topology for both PFC (power factor correction) and inverter, the Ultron HPH features up to 96% AC-AC efficiency. Delta’s advanced digital PFC control also contributes low iTHD < 3% and high input power factor > 0.99 resulting in significant TCO (Total Cost of Ownership) savings. Facilitating increased availability and power performance, the Ultron HPH is an ideal solution for protecting your mission critical operations.

Best-in-Class Power Performance and Efficiency

• Fully rated power (kVA=kW) for maximum power availability
• Leading AC-AC efficiency up to 96% saves energy costs
• Low harmonic pollution (iTHD<3%) & high input power factor (>0.99) reduce upstream investment costs

Assured Reliability

Wide input voltage range allows the UPS to operate in harsh electrical environments and extends battery life

DSP based technology enables reduction in the number of electronic components to lower failure rate

Redundant auxiliary power and fan design* enhance system reliabil

• Watch-dog design of dual auxiliary power circuit to eliminate single-point failure to ensure reliability

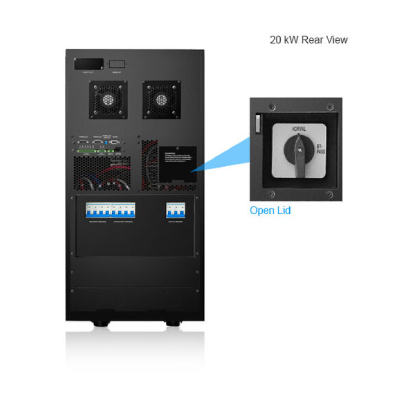

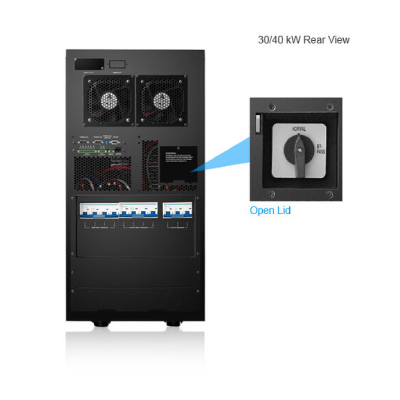

• Built-in manual bypass ensures continuous power to the load even if the UPS is under maintenance

Greater Flexibility

• A wide choice of configurations, such as N+X redundancy, and hot stand-by
• Adjustable charging current and battery voltage meet different battery configuration requirements
• Flexible battery configuration optimizes battery investment

Superior Serviceability and Management

Swappable interior architecture and front access servicing enables quick and easy maintenance*

ModelHPH-20K, HPH-30K, HPH-40K,
HPH-60K, HPH-80K, HPH-100K, HPH-120K
HPH-20K-BN/B, HPH-30K-BN/B, HPH-40K-BN/B
Power Rating[20K]: 20 kVA/kW
[30K]: 30 kVA/kW
[40K]: 40 kVA/kW
[60K]: 60 kVA/kW
[80K]: 80 kVA/kW
[100K]: 100 kVA/kW
[120K]: 120 kVA/kW
Input
Nominal Voltage380/220 Vac, 400/230 Vac, 415/240 Vac (3 phase, 4-wire + G)
Voltage Range-40% ~ 20% (242 ~ 477/140 ~ 276 Vac) **
Frequency40~70Hz
Power Factor> 0.99 (full load)
Current Harmonic Distortion< 3% Output Voltage380/220 Vac, 400/230 Vac, 415/240 Vac (3 phase, 4-wire + G) Voltage Regulation± 1 % Voltage Harmonic Distortion[20-40K]: < 1.5% (linear load) [60-120K]: <2% (linear load) Overload Capability≤105 %: continuous 106% ~ ≤125%: 10 minutes 126% ~ ≤150%: 1 minute >150%: 1 second
Output Power Factor1
Frequency50/60Hz +/- 0.05Hz
Battery
TypeSupport SMF/VRLA/Tubular/Ni-Cd
Quantity[20-40K]: 32-50 pcs
[60-120K]: 32-46 pcs****
In-built Charge Current (Max.)[20K]: 5A
[30/40K]: 9A
[60K]: 10A
[80K]: 15A
[100/120K]: 20A
Typical Backup Time***[20K-BN/B]: 15 min
[30K-BN/B]: 10 min
[40K-BN/B]: 9.5 min
Communication InterfacesSMART Slot x 1, MINI Slot x 1, Parallel Port x 2, RS232 Port x 1, REPO Port x 1, Charger Detection Port x 1, Input Dry Contact x 2, Output Dry Contact x 6, USB Port x 1*
Conformance
SafetyCE, RCM
UPS Classification According to IEC 62040-3VFI-SS-111
Other Features
Parallel RedundancyUp to 4 units
Emergency Power OffYes (local and remote)
Maintenance Bypass SwitchYes
Efficiency
Online ModeUp to 96% (HPH 40-120K efficiency is tested by TÜV)
ECO ModeUp to 99%
Environment
Operating Temperature0 ~ 40˚C
Relative Humidity5% ~ 95% (no condensing)
Audible Noise[20K]: < 55 dB [30/40K]: < 60 dB [60-120K]: < 65 dB Physical Dimensions (W x D x H)[20-40K]: 380 x 800 x 800 mm [60/80K]: 520 x 800 x 1175 mm [100/120K]: 520 x 800 x 1760 mm Weight[20K]: 66.5 kg [30K]: 86.06 kg [40K]: 86.5 kg [60K]: 186.5 kg [80K]: 191 kg [100/120K]: 312 kg Physical (BN/B) Dimensions (W x D x H)[20-40K]: 490 x 830 x 1400 mm Weight (with batt.)[20K-B]: 365 kg [30K/40K-B]: 385 kg Weight (without batt.)[20K-BN]: 131 kg [30/40K-BN]: 162 kg
