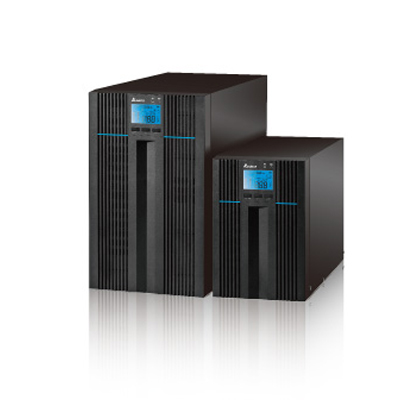

N Series UPS, Single Phase, 1/2/3 kVA

High-performance power protection with greater energy savings

The Amplon N series is a true online double-conversion UPS that can provide your critical equipment with reliable, stable sine wave power. It features significant advantages, including an output power factor of 0.9 and up to 93% AC-AC efficiency for greater energy savings. The Amplon N series provides a safe power supply guaranteed for mission critical applications such as work stations, POS, ATMs, and more.

          Availability

• True online double-conversion topology and zero transfer time to battery ensure high reliability.
• Advanced DSP (Digital Signal Processor) controller for fast computation capability and a simplified control circuit for enhanced stability.
• Wide input voltage range allows the UPS to work in harsh electrical environments.
• Generator compatibility ensures continuous and reliable power.                                                      Green with Low TCO
• High input power factor (> 0.99) and low input harmonic distortion (iTHD < 3%) save upstream investment.
• Output power factor up to 0.9 presents a stronger load capacity.
• AC-AC efficiency up to 93% and high efficiency of 91% at 50% load results in marked energy cost savings.
• Compact design saves more space for critical equipment.
  Intelligent Management
• Excellent local communications through LCD display.
• Intelligent battery management maximizes battery performance and sustains battery life.
• Mini slot and USB port enhance monitoring and manageability.

Model        N-1K / N-2K / N-3K
Power Rating
● N-1K1 kVA / 0.9 kW
● N-2K2 kVA / 1.8 kW
● N-3K3 kVA / 2.7 kW
Input
Nominal Voltage220/230/240 Vac
Voltage Range175~280 Vac (full load)
Frequency50/60 Hz ± 10 Hz
Power Factor> 0.99 (full load)
Current Harmonic Distortion< 3% Output
Power Factor0.9*
Voltage220/230/240 Vac
Frequency50/60 ± 0.05 Hz
Voltage Harmonic Distortion< 3% (linear load) Overload Capability< 105%: continuous 105~125%: 1 minute 125~150%: 30 seconds Crest Factor3:1 Receptacle ● N-1KIndia socket x 3 ● N-2KIndia socket x 4 ● N-3KIndia socket x 4, Terminal block x 1 Efficiency
AC-AC
● N-1K91%
● N-2K/3KUp to 93%
Battery
Battery Voltage
● N-1K24 Vdc
● N-2K48 Vdc
● N-3K72 Vdc
Typical Backup TimeUp to 7 minutes**
Recharge Time3 hrs to 90% ***
Charge CurrentStandard model: 1.5 A
Long backup model: 4 A (up to 8 A with optional inbuilt charger)
Audible Noise
● N-1K< 43 dBA ● N-2K/3K< 48 dBA DisplayLCD panel InterfaceMINI Slot x 1, USB Port x 1 Physical
Dimensions (W x D x H)
● N-1K145 x 320 x 225 mm
● N-2K/3K190 x 390 x 325 mm
Weight (Standard model)
● N-1K9.7 kg
● N-2K19.1 kg
● N-3K24.9 kg
Weight (Long backup model)
● N-1K4.4 kg
● N-2K8.2 kg
● N-3K8.5 kg
Environment
Operating Temperature0~40ºC
Relative Humidity5~95% (non-condensing)
* Long backup model is 0.8
** When the total load reaches 75%.
*** Long backup model depends on the capacity of external battery packs.
All specifications are subject to change without prior notice.
