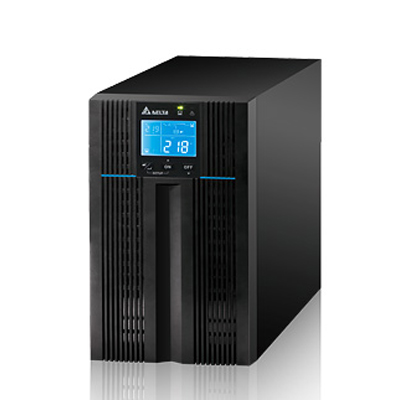

N Series UPS, Single Phase, 6/10 kVA

Innovative. Compact. High Performance.

The Amplon N series 6-10kVA UPS is a single-phase on-line UPS with pioneering technology that provides output power factor up to unity and AC-AC efficiency to a maximum 95%. Its remarkably compact dimensions reserve more room for critical equipment such as workstations, POSs, ATMs, office appliances, small server rooms, and production equipment. The Amplon N series superior features include a N+X parallel redundancy function and variable fan speed control to guarantee high system availability and best Total Cost of Ownership (TCO).

         The Most Compact Design and Best TCO

• The smallest dimensions in its class saves significant space for more critical equipment.
• A pioneer in unity power factor (kVA=kW) to maximize power availability.
• The highest AC-AC efficiency up to 95% and efficiency of 98% in ECO mode for exceptional energy cost savings.
• Automatic speed regulation function with multi-stage fan speed control maximizes system efficiency, significantly reduces audible noise, and prolongs the service life of the fans.
  High Availability
• True online double-conversion topology and zero transfer time to battery ensure high reliability.
• Parallel configuration for expansion and N+X redundancy up to 4 units.
• Advanced DSP (Digital Signal Processor) controller for fast computation capabilities and a simplified control circuit for enhanced stability.
• Generator compatibility ensures continuous and reliable power.
  Intelligent Management
• Excellent local communications through user-friendly LCD display and LED indicators.
• Intelligent battery management maximizes battery performance and extends battery life.
• Various types of communication interfaces enhance monitoring and manageability.

Model        N- 6K / N-10K
Power Rating
● N-6K6 kVA / 6 KW
● N-10K10 kVA / 10 KW
Input
Nominal Voltage200/208/220/230/240 Vac
Voltage range200/208 (de-rating to 90%) : 100~280 Vac *
220/230/240 : 100~280 Vac **
Frequency40~70 Hz
Power Factor> 0.99 (full load)
Current Harmonic Distortion< 3% Output
Power Factor1
Nominal Voltage200/208/220/230/240 Vac
Frequency50/60 ± 0.05 Hz
Voltage Harmonic Distortion< 2% (linear load) Overload capability< 105%: continuous 105~125%: 2 minutes 125~150%: 30 seconds Crest factor3:1 Efficiency
AC-ACUp to 95%
ECO modeUp to 98%
Battery
Voltage192-264 Vdc adjustable
Charge current1.5-8 A selectable
Audible Noise< 50 dBA DisplayLED indicators and LCD display Communication InterfacesREPOx1, RS-232 Port x1, USB Port x1, Parallel Port x2, Mini Slot x1 Physical
Dimensions (W x D x H)190 x 390 x 325 mm
Weight
● N-6K10.1 kg
● N-10K12.7 kg
Environment
Operating Altitude1000 meters (without de-rating)
Operating Temperature0~40℃ (at 100% load)
45~55℃ (de-rating to 80%)
Storage Temperature-15~50℃
Relative Humidity5~95% (non-condensing)
